ACT Honda S2000 HD/Race Sprung 6 Pad Clutch Kit
Applications:
2000-2009 Honda S2000

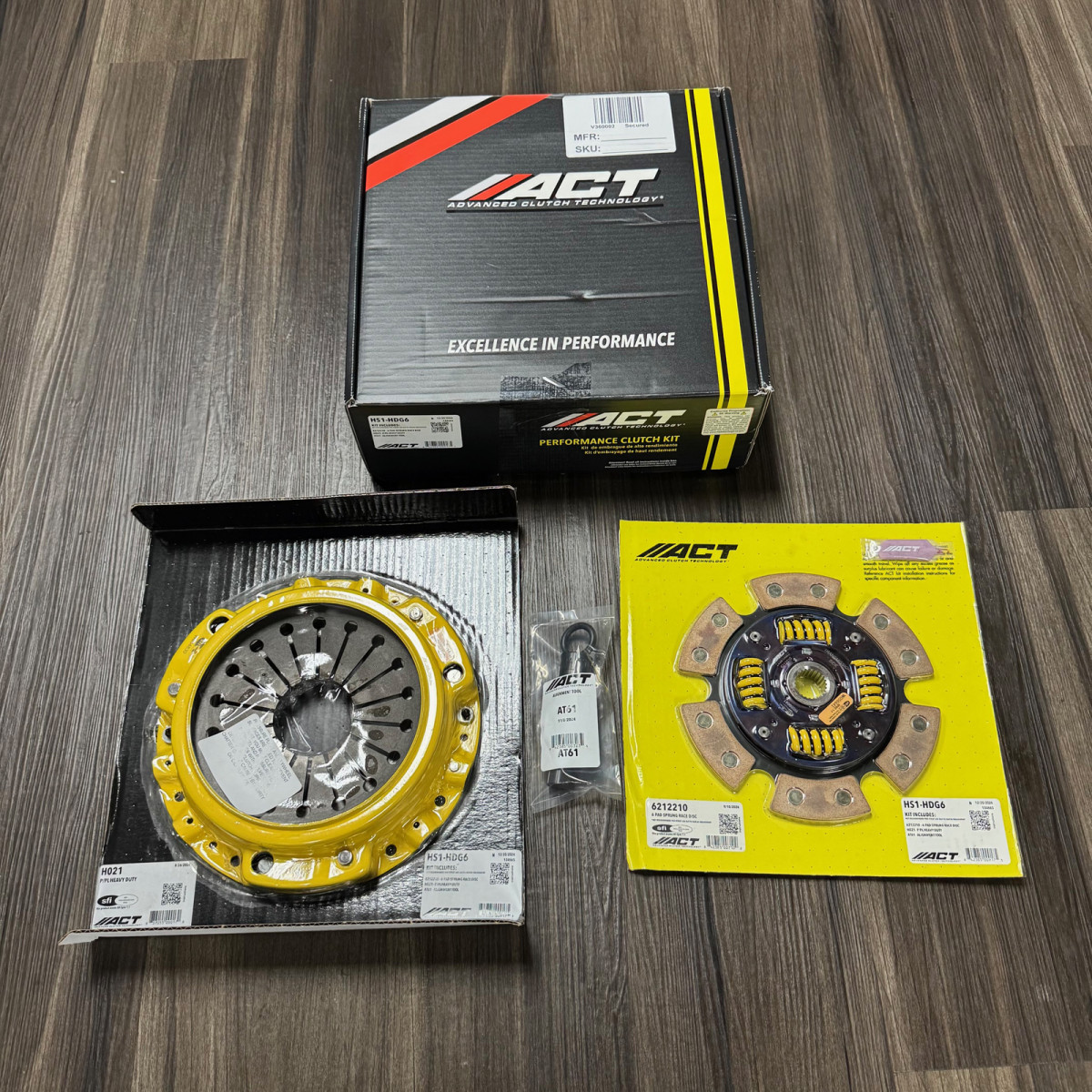

Includes:

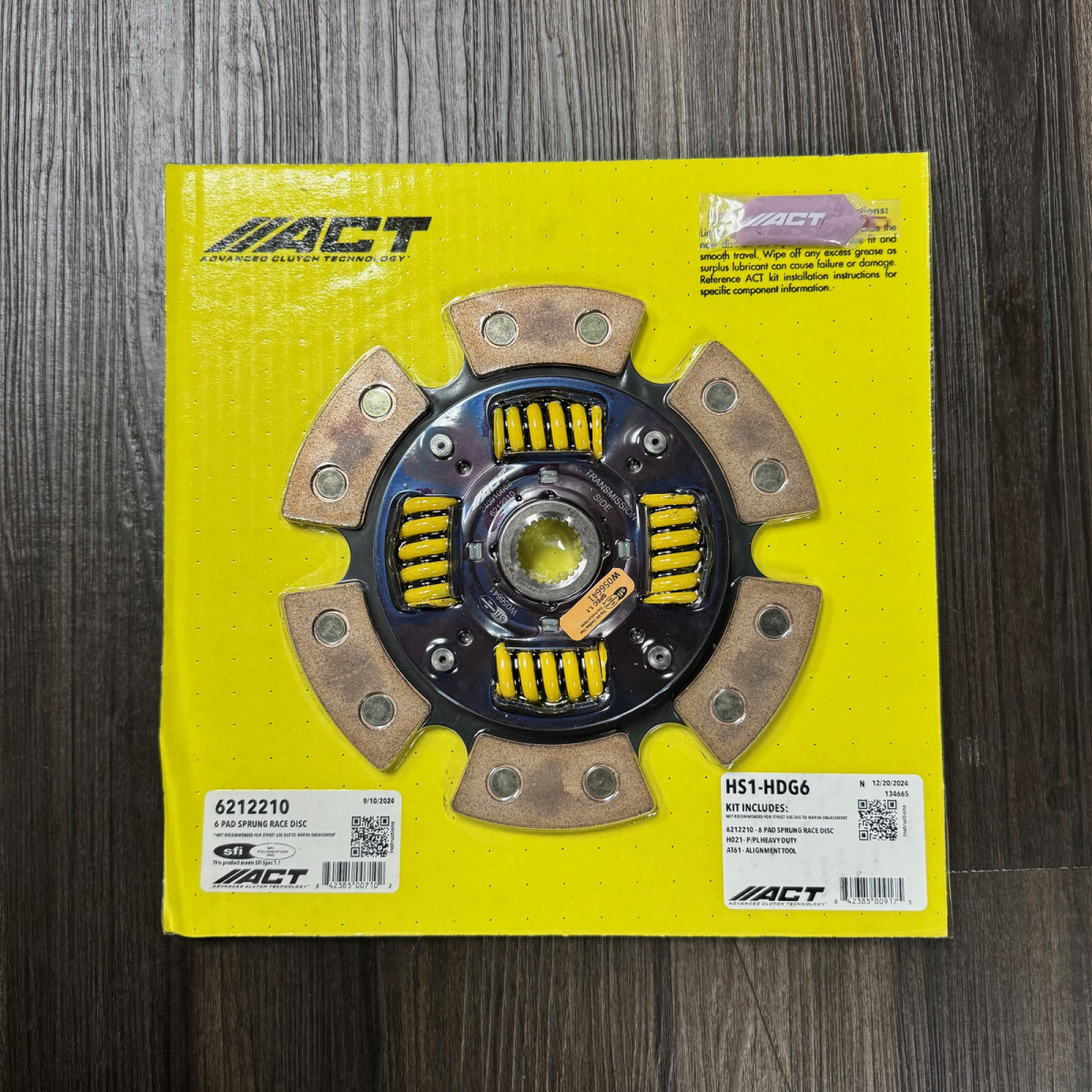

Clutch Friction Disc (6212210)

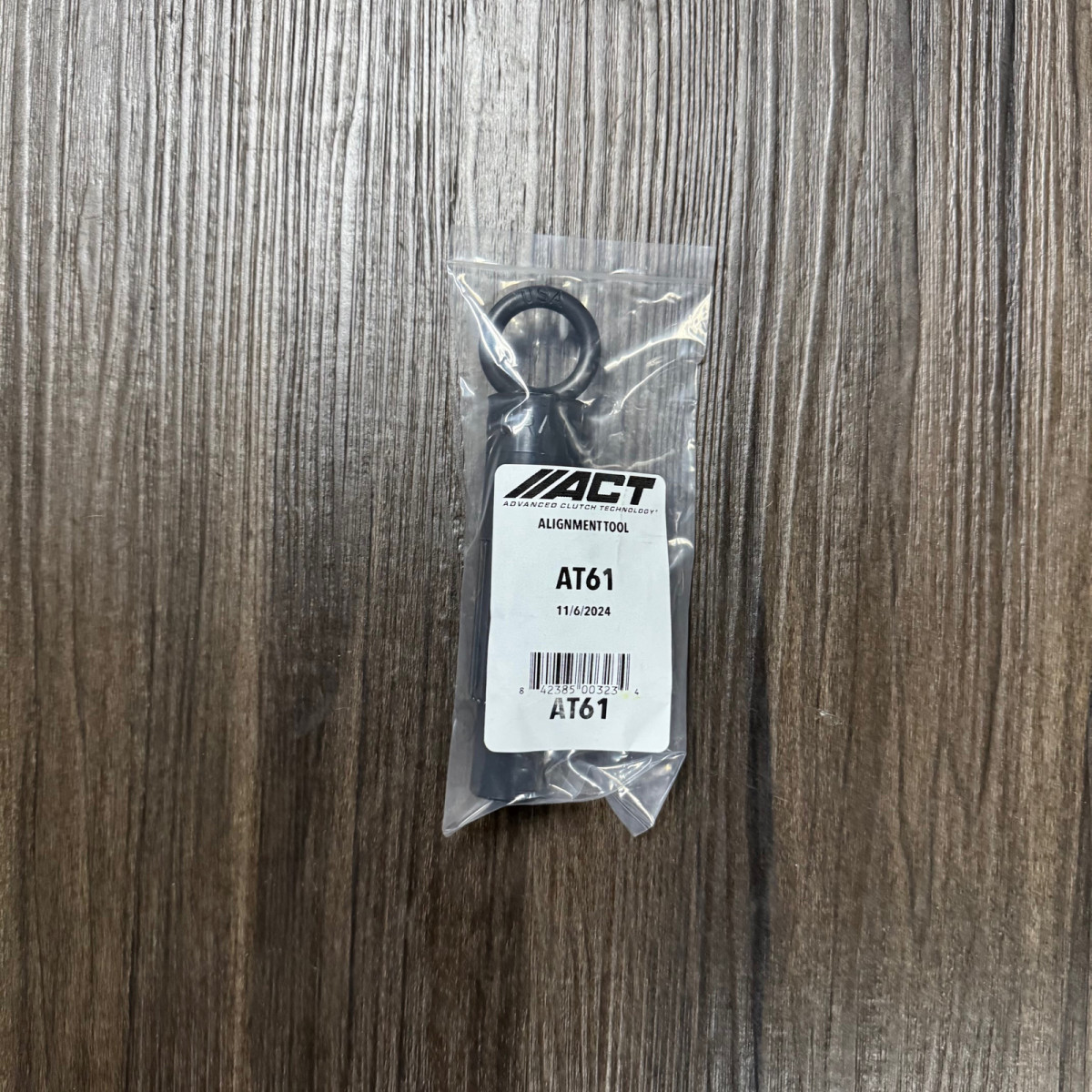

Clutch Alignment Tool (AT61)

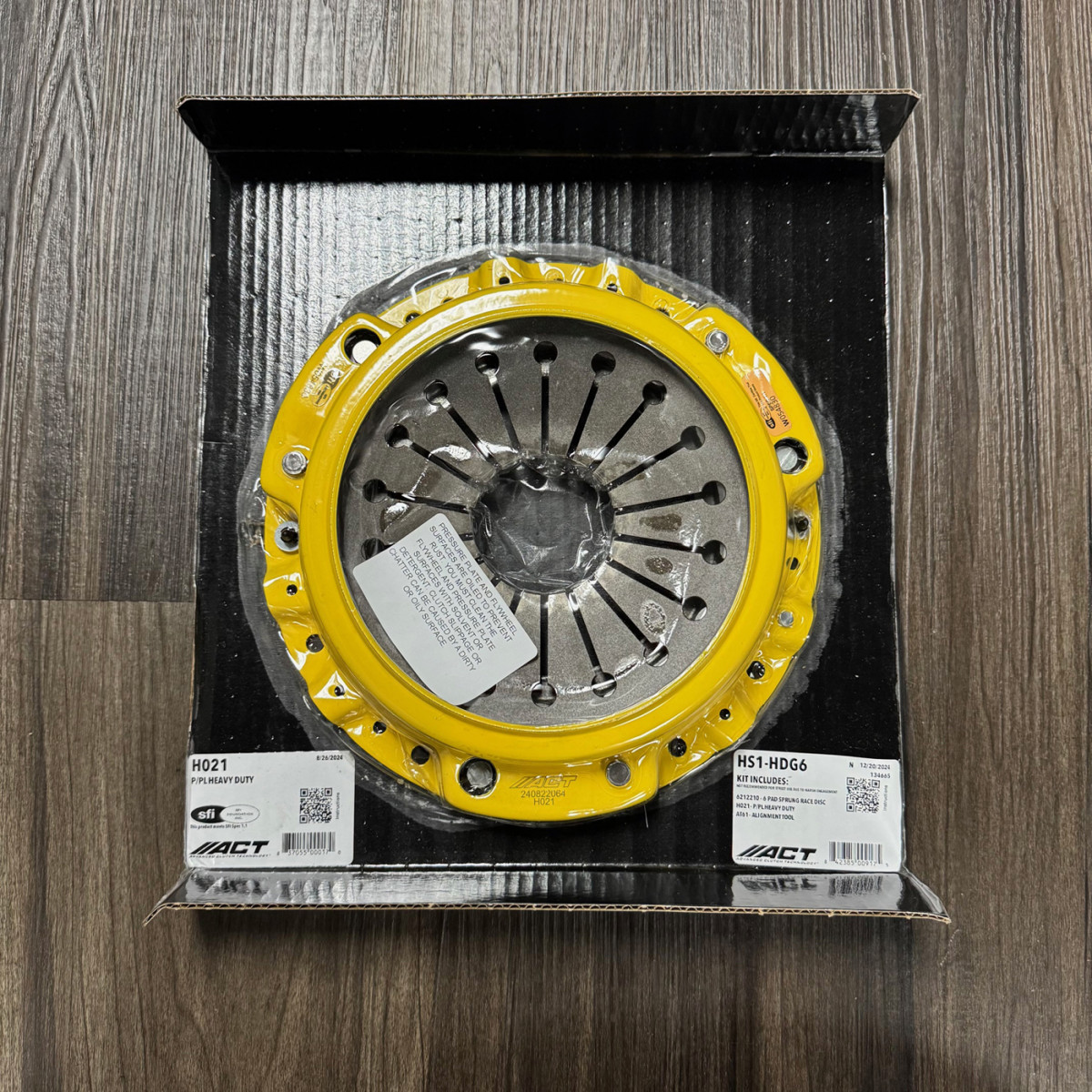

Clutch Pressure Plate (H021)
Specs:
Part Fitment Requirement: Kit does not include bearings.
Product Weight (lbs.): 13.9
Torque Capacity (ft/lbs.): 475
Torque Capacity Over OE: 0.78
Pressure Plate Type: Heavy Duty
Clutch Disc Diameter (in.): 8.3
Clutch Disc Diameter (mm): 212
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter (in.): 1.03125
Alignment Tool Included: Yes
HS1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
