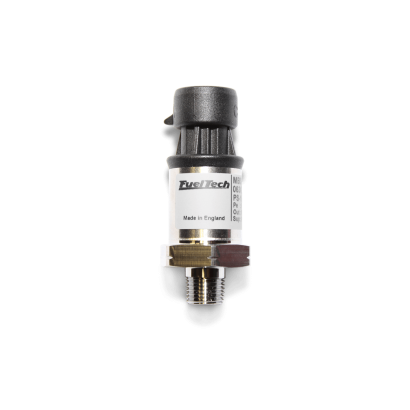

FUEL TECH PS-150 PRESSURE SENSOR (0-150 PSI)
TECHNICAL DESCRIPTION
Output: 0.5-4.5V
Supply: 5V
Range: 0-150 psi
Thread size: 1/8" NPT
Connector Pinout:
A - Ground
B - 5V
C - Signal
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECS
Performance Long Term Drift: 0.2% FS/YR (non-cumulative)
Accuracy: 0.25% FS
Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)
Compensated Temp: -40°F to +257°F (-40°C to +125°C)
Operating Temp: -40°F to +257°F (-40°C to +125°C)
Zero Tolerance: 0.5% of span
Span Tolerance: 0.5% of span
Response Time: 1ms
Fatigue Life: 1M Cycles
Wetted Parts: 17-4 PH Stainless Steel
Enclosure: IP67 (IP65 for electrical code G)
Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)
Shock: Withstands free fall to IEC 68-2-32 procedure 1
EMC (Radiated Immunity): 100V/m
Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Weight: 35 Grams
