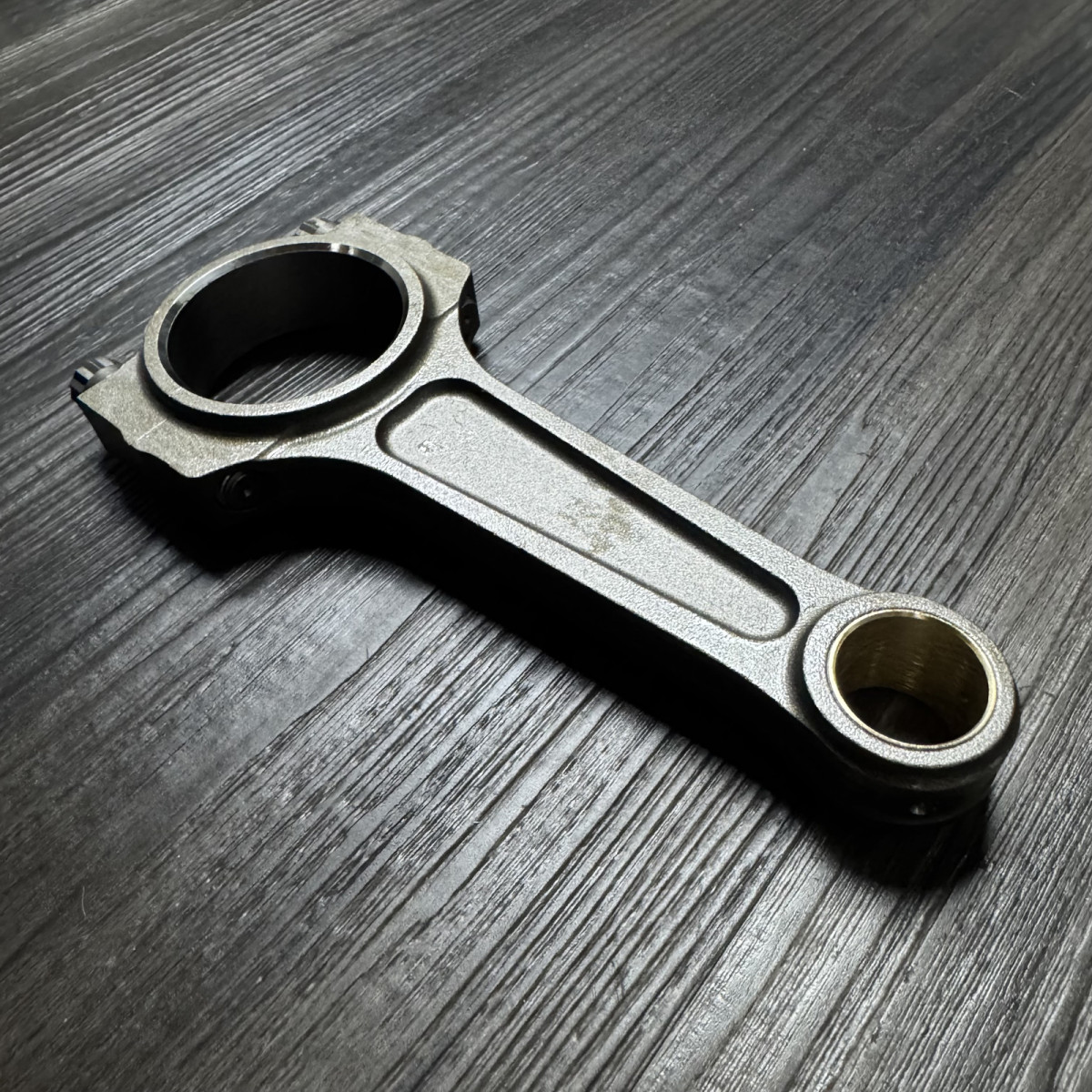

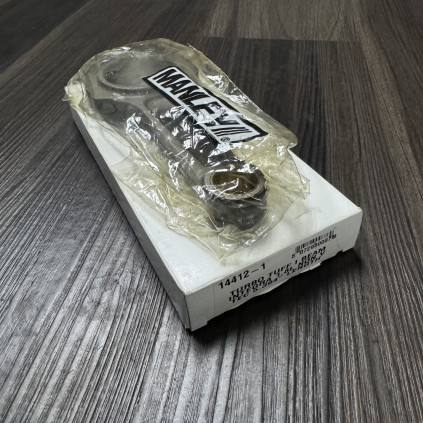

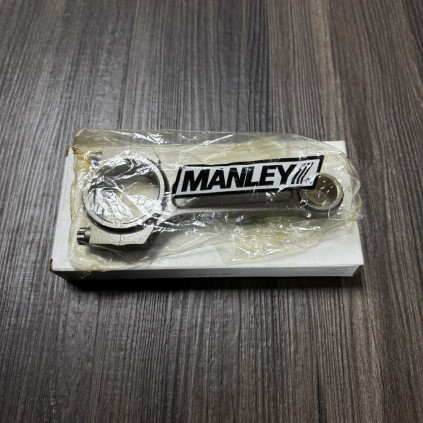

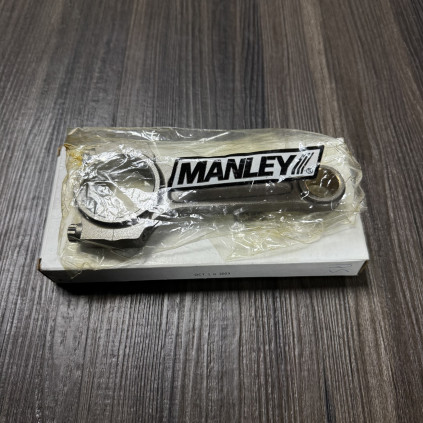

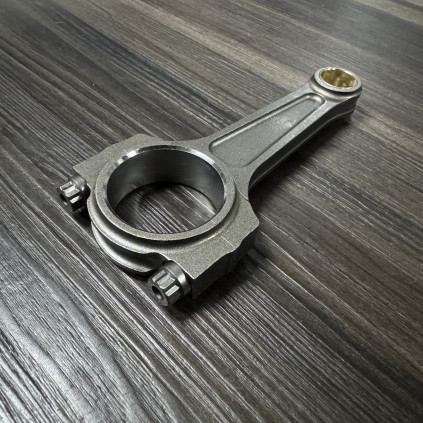

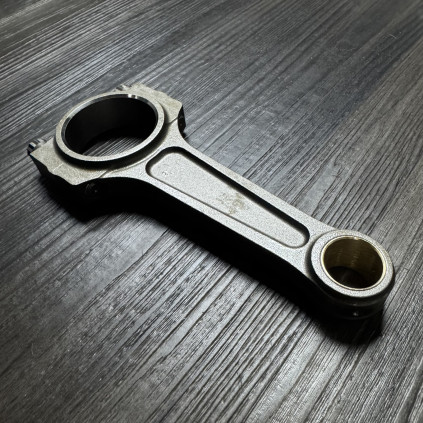

Manley TurboTuff Honda Acura B Series B1B LS B20B Single Rod
Fits:
B18B LS non VTEC Motors
B20B CRV non VTEC Motors
1990-1993,1997-2001 Acura Integra GS
1990-2001 Acura Integra LS
1990-1998 Acura Integra RS
1995-1996 Acura Integra Special Edition
Features
Connecting Rod Length Center to Center (in.): 5.394 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Big End Bore Diameter (in.): 1.8900 in.
Cap Retention Style: Cap screw
Big End Width (in.): 0.935 in.
Pin End Bore Diameter: 0.828 in.
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 555
Advertised Horsepower Rating: 1,000 hp
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Benefits
More rigid and able to handle compression forces
Specifically designed to handle high horsepower applications when using turbos and/or nitrous
Please Note: Will fit non VTEC applications.
