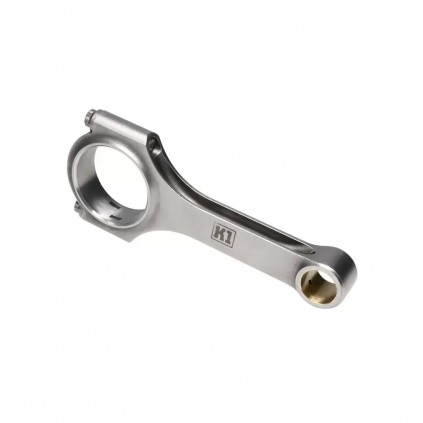

K1 Technologies Connecting Rod Set H-Beam Honda K24

K1 Technologies connecting rods are manufactured with optimized strength and weight characteristics in mind to deliver reliable performance. Forged from 4340 steel, K1 rods featured a shot-peened surface finish which smooths surface blends and reduces potential stress profiles. K1 connecting rods are held to strict quality standards and undergo magnetic particle testing to ensure material properties are free of flaws. Each rod is also subject to bore tolerance compliance, holding them to +/- .0001 after finishing. Additionally, K1 rods are balanced and tested to be within +/- 1 gram per end. A dual-ribbing design on the rod caps of K1 connecting rods helps maximize strength and allows the rod big end to maintain roundness as engine RPMs increase. Full-floating, precision-honed bronze bushings are fixed into the small ends of the rods for low friction and high wear resistance. Fitted with ARP 2000 rod bolts rated at 200,000 psi tensile strength for most applications, K1 connecting rods deliver an industry-leading combination of strength and value.

K1 Technologies Honda K24 Connecting Rod Set, 152.00 mm Length, 22.00 mm Pin, 51.00 mm Journal, 3/8 in. ARP 2000 Bolts, Forged 4340 Steel, H-Beam, Set of 4.

Features:

Average Gram Weight: 460
Bolt Diameter: 3/8
Center To Center Length: 152.00
Connecting Rod Finish: Shot-peened
Engine: K24
Main Bearing Bore Diameter: 51.00
Main Bearing Width: 19.86
Make: Honda
Material: Forged 4340 Steel
Pin End Bore: 22.00
Rod Type: H-Beam
Title: Honda, K24, 152.00 mm Length, Connecting Rod Set
Wrist Pin Journal Bushing Width: 19.86
