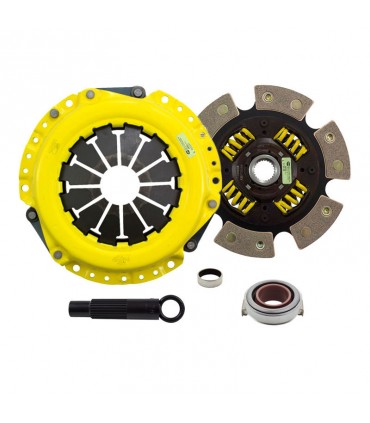

ACT K Series Heavy Duty 6 Puck Sprung
Features
Specifications
Item Description: HD/Race Sprung 6 Pad
Product Weight (lbs.) 11.7
Torque Capacity (ft/lbs.) 330
Torque Capacity Over OE 73%
Disc Material Ceramic
Clutch Disc Diameter (Inches) 8.4
Clutch Disc Diameter (Millimeters) 214
Input Shaft Diameter (inches) 1.03125
Pressure Plate Type Heavy Duty
Warranty 12 Months
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
AR1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Description
Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle Life Moderate friction life, extended by ACT's exclusive diaphragm design
Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use: Recommended for high horsepower street or race use
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
