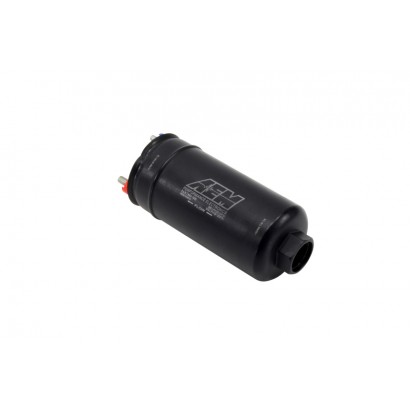

AEM 400LPH 044 Style High-Flow High-Pressure Fuel Pump

AEM 400LPH AN high flow high-pressure fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see part numbers below). It utilizes the industry standard "044 Style" envelope and -10AN female inlet and -6AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value.

Capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab.

Rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting).

A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included. Optional accessories that are sold separately include a -10 ORB fitting inlet pre-filter (for use with in-tank installations), and both -8 and -6 discharge adapters without integral check valves. Accessory fittings are hard anodized.

• Designed for high output naturally aspirated and forced induction EFI vehicles
• Popular "044 Style" physical configuration but with AN inlet & discharge port connections
• Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
• Installs externally or in-tank
• Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
• Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

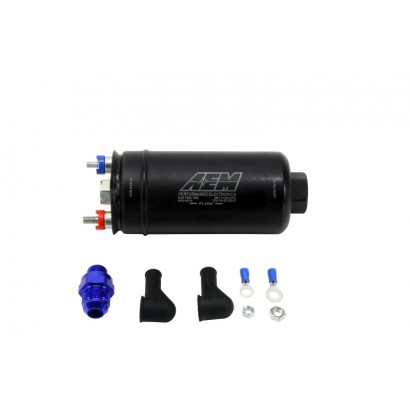

• Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions

Technical Specs:

• Weight: 35.8oz (1015 grams)
• Outside Diameter: 60mm OD
• External Materials: Black plated steel with laser etching, with zamac discharge end cap
• Inlet Fitting: -10AN 7/8"-14 Female
• Outlet Fitting: -6AN 9/16"-18 Female
• PRV Activation: 150 PSI
• Impeller Design: Roller vane with ceramic end plate

Voltage Specs:

• Connector Terminal: 6mm stud positive, 5mm stud negative
• Min Voltage Input: 10 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
• Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
• Fuse: 25 amps (13.5v)

* Power ratings given using gasoline and assuming a base fuel pressure of 43 PSI, 13.5v at the pump with a BSFC of 0.5. Boost fuel pressure is assumed to be the base pressure of 43 PSI + boost pressure. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
