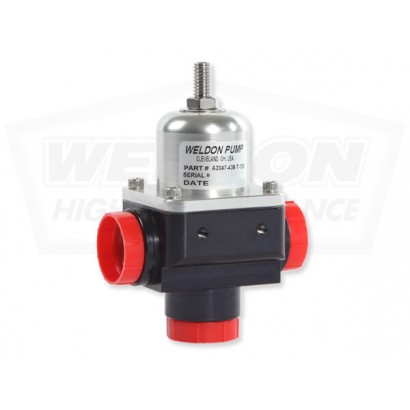

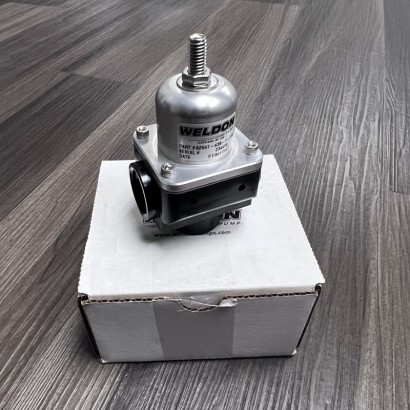

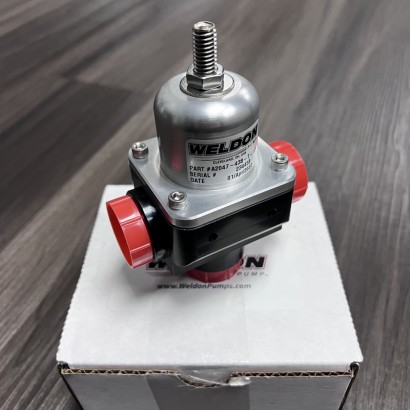

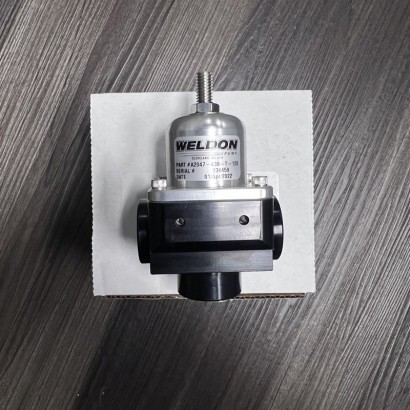

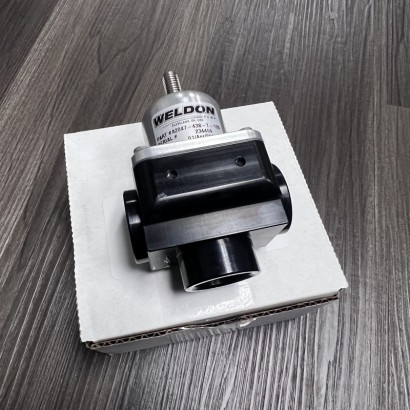

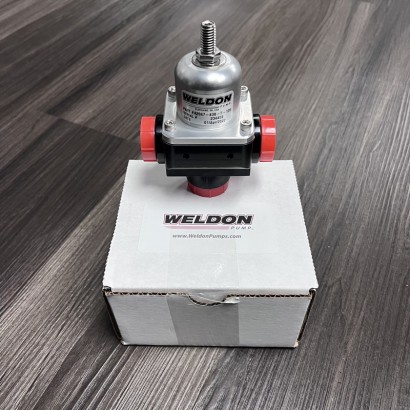

All Weldon Regulators maintain steady fuel delivery during dramatic changes in fuel demand, such as WOT conditions, boost application and gear changes with precision pressure control
.438" bypass orifice
Teflon® diaphragm with o-ring seal ensures leak free operation
Flows over 12 GPM
1/8" NPT Gauge Port
1/8" NPT manifold pressure reference port
Adjustable between 28 – 120 PSI
-12 pressure and return ports
Billet Aircraft Aluminum with MIL-SPEC anodizing
For use with all Weldon pumps as well as pumps from other manufacturers
Compatible with Gasoline
Methanol
Diesel
Ethanol
All racing fuels
