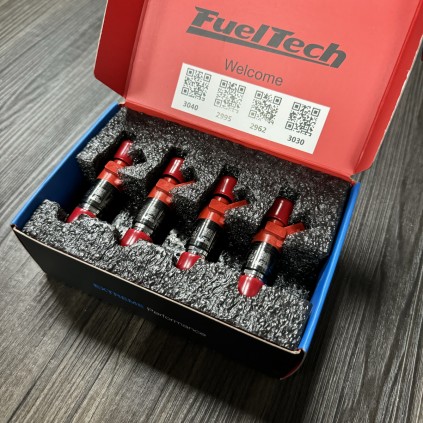

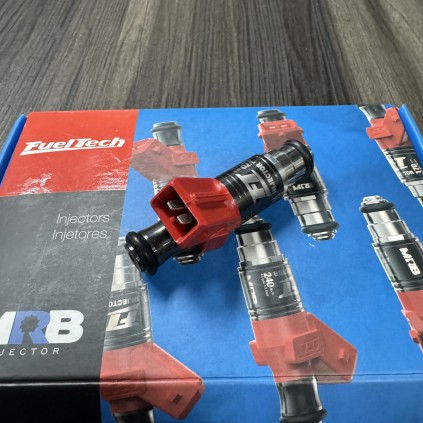

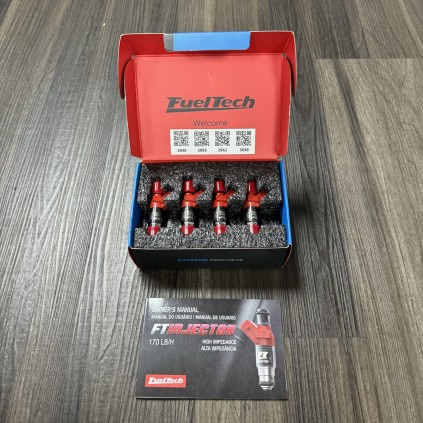

FuelTech Injectors 170 lb/h Set of 4
Base Pressure 30psi / 142 lb-h / 1,491 cc/min
Base Pressure 43.5psi / 170 lb-h / 1,785 cc/min
Base Pressure 90psi / 253 lb-h / 2,656 cc/min
DIMENSIONS:
1 - Overall height - 74 mm (2.91”)
2 - Overall width - 18 mm (0.71”)
3 - Top O-ring diameter - 14.50 mm (0.56”)
4 - Tip - 4.1 mm (0.16”)
5 - Bottom O-ring diameter - 14.50 mm (0.56”)
The FT Injector 170 lb/hr (1785cc/min @ 43.5 psi) is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.
REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders
It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used
Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
Compatible with any ECU on the market
FuelTech warranty and support
Project developed prioritizing the quality and durability of the injector
