Skunk2 Alpha Series Honda K24A/Z Connecting Rods

Alpha Series Connecting Rods for the Honda K24A1, K24A2, K24A4, K24A8 and K24Z engines.

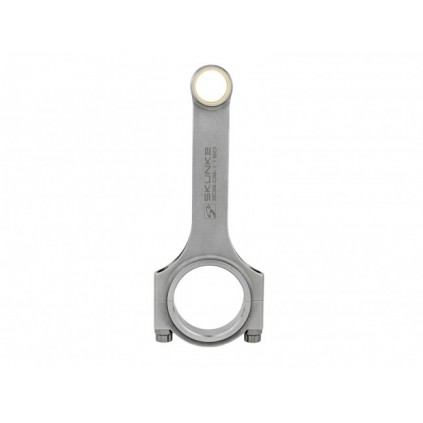

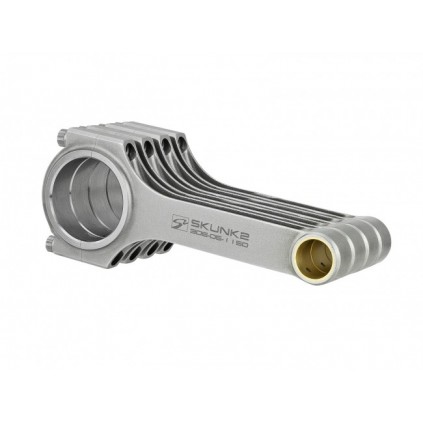

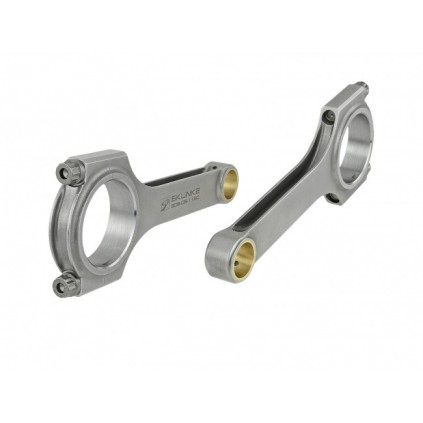

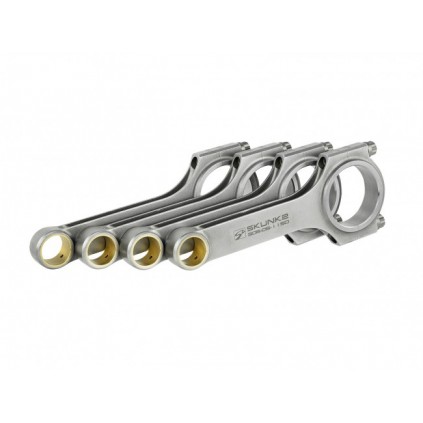

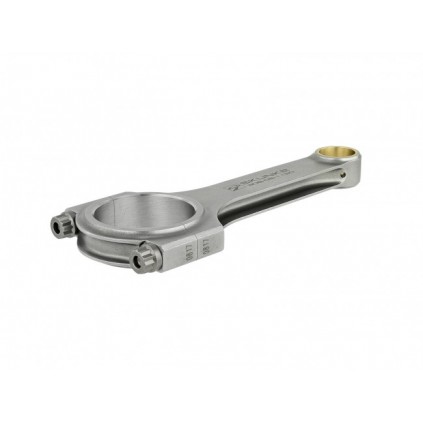

Skunk2 Alpha Series Rods feature an H-Beam design that is precision CNC machined from high-strength aircraft-grade 4340 alloy steel forgings that are then heat treated, tempered, and shot peen stress relieved. Skunk2 Alpha rods come with bronze wrist pin bushings and feature forced pin oiling. Each rod incorporates ARP2000 fasteners rated at over 220,000psi and can handle between 175hp to 200hp per cylinder on average.

Features:

Forged 4340 Alloy Steel

Bronze Wrist Pin Bushings

Forced Pin Oiling

Shot Peen Stress Relieved

Balanced to within +/- 1 gram

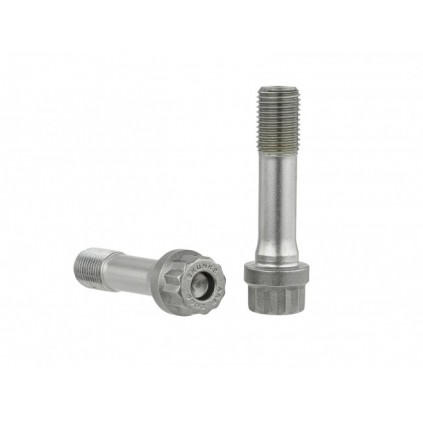

3/8-Inch ARP2000 Rod Bolts Included

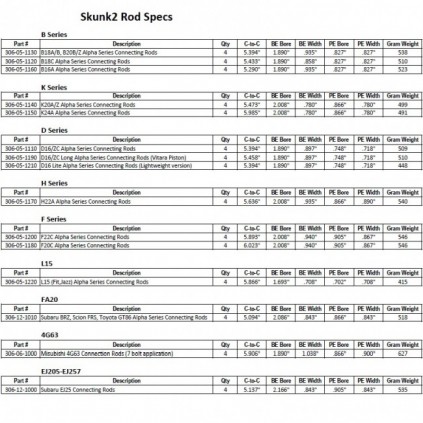

Specifications:

Set of: 4 rods

Weight: 491 grams

C-to-C: 151.99 mm

B.E. Bore: 51 mm

B.E. Width: 19.81 mm

P.E. Bore: 22 mm

P.E. Width: 19.99 mm
